Draw bar springs
Draw bar springs in stainless spring steel
Order Monday-Thursday before 15:30 and Friday before 14:45 and we’ll dispatch your order the same day with expected delivery within 2-4 days. This applies to all stocked draw bar springs.
See quantity discounts and prices by clicking on the shopping cart next to the required product.
Use the range sliders below for quick and easy navigation.

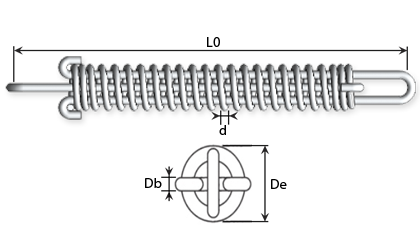

A draw bar spring consists of one compression spring and two brackets. With one bracket at each end, the compression spring converts to an extension spring. The brackets are stronger than the regular loops on extension springs. Draw bar springs are most often used in connection with mooring boats.
A draw bar spring is also sometimes called a boat spring.
| View prices - Add to Cart | Material | d Wire diameter (mm) |
De External diameter (mm) |
L0 Unloaded length (mm) |
Ln Max. loaded length (mm) |
Sn Maximum travel (mm) |
Fn Maximum load at Ln (N) |
R Spring constant (N/mm) |
db Wire loops (mm) |
SKU | Stock | Tech Drawing | Read More | 3D CAD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stainless steel 302 | 1.00 | 7.30 | 40.00 | 49.60 | 9.60 | 39.60 | 4.11 | 1.00 | BF-10980 |
|
|||||
| Stainless steel 302 | 1.00 | 7.30 | 50.00 | 64.00 | 14.00 | 39.20 | 2.79 | 1.00 | BF-10981 |
|
|||||
| Stainless steel 302 | 1.00 | 7.30 | 60.00 | 75.40 | 15.40 | 23.90 | 1.55 | 1.00 | BF-10982 |
|
|||||
| Stainless steel 302 | 1.60 | 14.10 | 80.00 | 114.00 | 3.40 | 117.00 | 3.45 | 1.60 | BF-10983 |
|
|||||
| Stainless steel 302 | 1.60 | 14.10 | 100.00 | 150.00 | 50.00 | 119.00 | 2.34 | 1.60 | BF-10984 |
|
|||||
| Stainless steel 302 | 1.60 | 14.10 | 125.00 | 201.00 | 76.00 | 121.00 | 1.58 | 1.60 | BF-10985 |
|
|||||
| Stainless steel 302 | 2.00 | 22.00 | 150.00 | 218.00 | 68.00 | 141.00 | 2.05 | 2.00 | BF-10986 |
|
|||||
| Stainless steel 302 | 2.00 | 22.00 | 175.00 | 275.00 | 100.00 | 140.00 | 1.40 | 2.00 | BF-10987 |
|
|||||
| Stainless steel 302 | 2.00 | 22.00 | 200.00 | 306.00 | 106.00 | 119.00 | 1.12 | 2.00 | BF-10988 |
|
|||||
| Stainless steel 302 | 2.00 | 22.00 | 225.00 | 375.00 | 150.00 | 141.00 | 0.94 | 2.00 | BF-10989 |
|
- BF-10980In stock: 33
Material Stainless steel 302d - Wire diameter (mm) 1.00De - External diameter (mm) 7.30L0 - Unloaded length (mm) 40.00Ln - Max. loaded length (mm) 49.60Sn - Maximum travel (mm) 9.60Fn - Maximum load at Ln (N) 39.60R - Spring constant (N/mm) 4.11db - Wire loops (mm) 1.00
- BF-10981In stock: 25
Material Stainless steel 302d - Wire diameter (mm) 1.00De - External diameter (mm) 7.30L0 - Unloaded length (mm) 50.00Ln - Max. loaded length (mm) 64.00Sn - Maximum travel (mm) 14.00Fn - Maximum load at Ln (N) 39.20R - Spring constant (N/mm) 2.79db - Wire loops (mm) 1.00
- BF-10982In stock: 32
Material Stainless steel 302d - Wire diameter (mm) 1.00De - External diameter (mm) 7.30L0 - Unloaded length (mm) 60.00Ln - Max. loaded length (mm) 75.40Sn - Maximum travel (mm) 15.40Fn - Maximum load at Ln (N) 23.90R - Spring constant (N/mm) 1.55db - Wire loops (mm) 1.00
- BF-10983In stock: 17
Material Stainless steel 302d - Wire diameter (mm) 1.60De - External diameter (mm) 14.10L0 - Unloaded length (mm) 80.00Ln - Max. loaded length (mm) 114.00Sn - Maximum travel (mm) 3.40Fn - Maximum load at Ln (N) 117.00R - Spring constant (N/mm) 3.45db - Wire loops (mm) 1.60
- BF-10984In stock: 51
Material Stainless steel 302d - Wire diameter (mm) 1.60De - External diameter (mm) 14.10L0 - Unloaded length (mm) 100.00Ln - Max. loaded length (mm) 150.00Sn - Maximum travel (mm) 50.00Fn - Maximum load at Ln (N) 119.00R - Spring constant (N/mm) 2.34db - Wire loops (mm) 1.60
- BF-10985In stock: 68
Material Stainless steel 302d - Wire diameter (mm) 1.60De - External diameter (mm) 14.10L0 - Unloaded length (mm) 125.00Ln - Max. loaded length (mm) 201.00Sn - Maximum travel (mm) 76.00Fn - Maximum load at Ln (N) 121.00R - Spring constant (N/mm) 1.58db - Wire loops (mm) 1.60
- BF-10986In stock: 30
Material Stainless steel 302d - Wire diameter (mm) 2.00De - External diameter (mm) 22.00L0 - Unloaded length (mm) 150.00Ln - Max. loaded length (mm) 218.00Sn - Maximum travel (mm) 68.00Fn - Maximum load at Ln (N) 141.00R - Spring constant (N/mm) 2.05db - Wire loops (mm) 2.00
- BF-10987In stock: 11
Material Stainless steel 302d - Wire diameter (mm) 2.00De - External diameter (mm) 22.00L0 - Unloaded length (mm) 175.00Ln - Max. loaded length (mm) 275.00Sn - Maximum travel (mm) 100.00Fn - Maximum load at Ln (N) 140.00R - Spring constant (N/mm) 1.40db - Wire loops (mm) 2.00
- BF-10988In stock: 6
Material Stainless steel 302d - Wire diameter (mm) 2.00De - External diameter (mm) 22.00L0 - Unloaded length (mm) 200.00Ln - Max. loaded length (mm) 306.00Sn - Maximum travel (mm) 106.00Fn - Maximum load at Ln (N) 119.00R - Spring constant (N/mm) 1.12db - Wire loops (mm) 2.00
- BF-10989In stock: 40
Material Stainless steel 302d - Wire diameter (mm) 2.00De - External diameter (mm) 22.00L0 - Unloaded length (mm) 225.00Ln - Max. loaded length (mm) 375.00Sn - Maximum travel (mm) 150.00Fn - Maximum load at Ln (N) 141.00R - Spring constant (N/mm) 0.94db - Wire loops (mm) 2.00
Stainless steel:
DIN 17224 AISI 302 WERKSTOFF NR. 1.4310 EN Norm 10270-3
Working temperature between -200 ºC and +250 ºC
The service life of a spring is generally very difficult to define. A large number of parameters come into play, and it is therefore impossible to define a service life.
Parameters with a significant influence on service life include: Installation, installation method, number of movements, vibrations, shocks, torsion, length of travel, non-axial travel, temperature, wear against other surfaces, environment of use, any cleaning agents, lateral impacts, etc.
Applying the maximum load to the spring or exceeding it will shorten its service life and may cause it to become permanently distorted.
