CF017-0103
Part delivery is possible
If the desired amount is not shown as in stock, we can make a part delivery. We will contact you as soon as possible with the expected delivery date on the outstanding part of your order.
If you would like a quotation for other amounts, please contact us. [email protected]
Subject to goods being unsold. Stock levels are updated continuously round the clock.

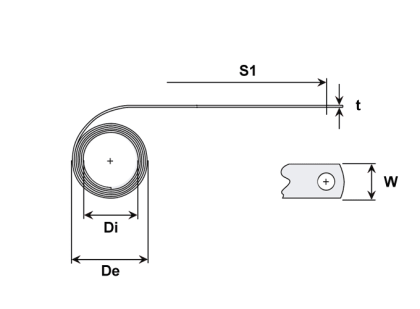

| Di - Internal diameter (mm) | 9.50 |
|---|---|
| De - External diameter (mm) | 12.75 |
| Fn - Maximum load at Ln (N) | 4.60 |
| t - Material thickness (mm) | 0.13 |
| W - Band width (mm) | 7.90 |
| S1 - Extraction (mm) | 372.00 |
| Service life cyclus - (Pcs.) | 4,000.00 |
| hm - Hole for fitting (mm) | 3.30 |
| Material | Stainless steel 301 |
